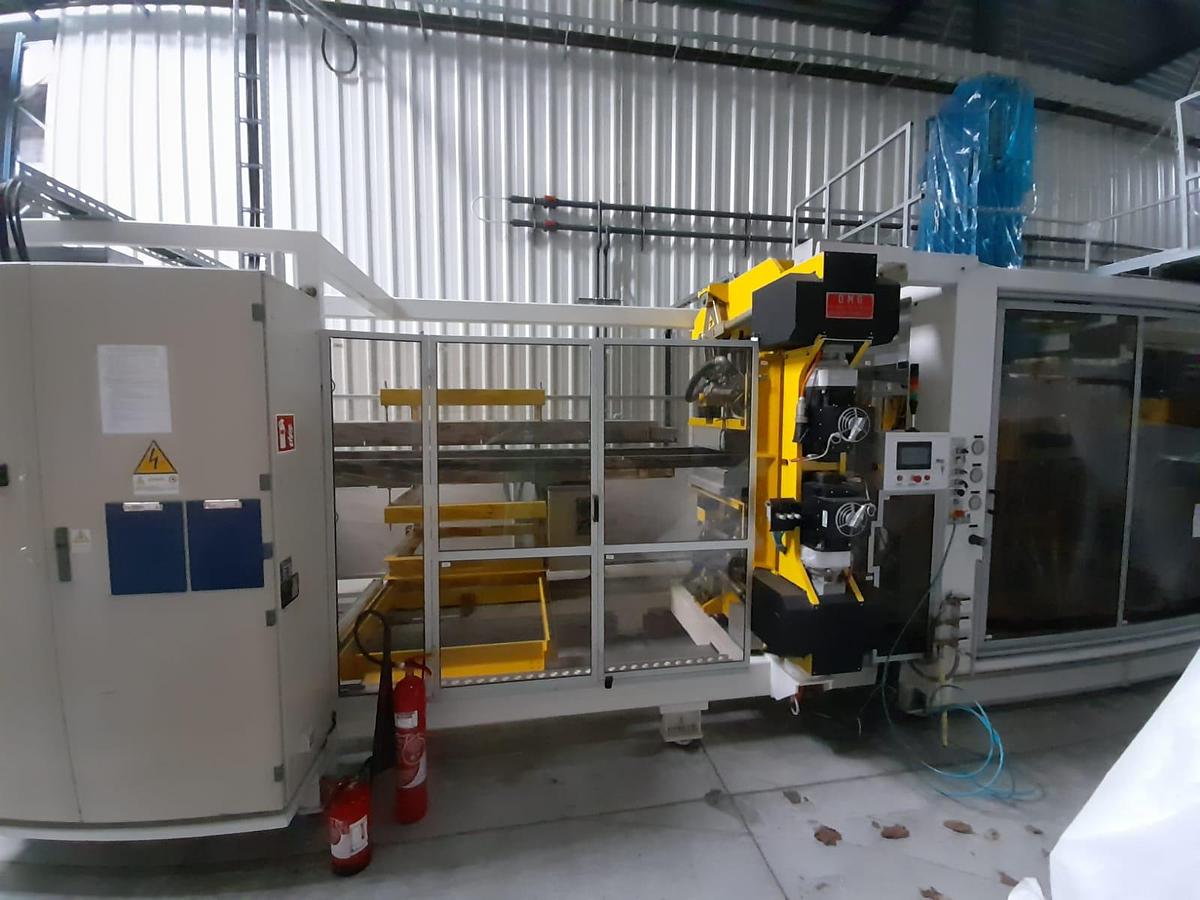

2009 OMG OMF/PVE 112 PN-M

Max Forming area (L x W): 1400 x 800mm Min Forming area (L x W): 300 x 300mm Max.positive and negative depth 150 mm Max. Sheet width 840 mm Number of stations: 3 Product type: Container Feeding Systems: Roll Fed Type: Hydraulic The machine has been designed for PET film. Upper heating, installed power 55 kW Lower heating, installed power 55 kW Processing air pressure 6 bar Max. Forming pressure 2 bar Hydraulic power pressure 11 kW Max. Cutting clamping force approx. 70T No preheating unit The production capacity for height of tray H60 i H80 without padding – max. 24 000 pcs / 8h The production capacity for height of tray H60 i H80 with padding – max. 10 000 pcs / 8h Noise ( near 1 m): max 82 dB The machine includes reel holder, automatic chain feeding and transport system, heating zone, forming station, cutting station, stacking station. All settings are controlled by the PLC operator panel.
