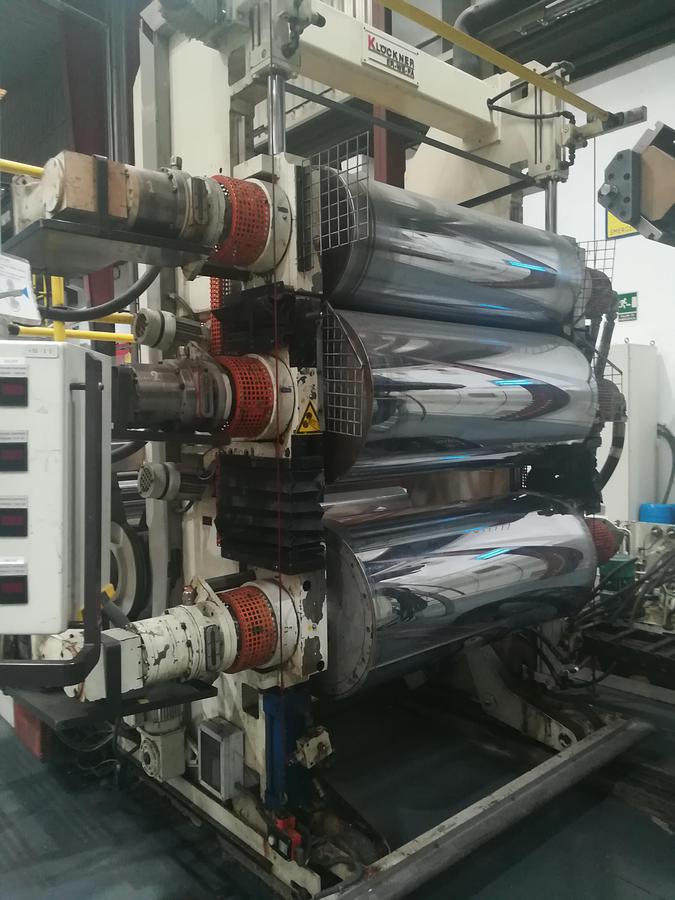

1994 Davis Standard PP/PS Extrusion Line
Sold
Description
1994 Davis Standard Sheet Extrusion Line
- Machine is supplied with 4 x Extruders.
- 125mm 1994 Davis Standard Main Screw - 800 kg/h
- 125mm 1994 Davis Standard Main Screw Neocell - 800 kg/h
- 75.0mm 2015 Battenfeld Co-Extruder - 880 kg/h (PS)
- 63.5mm 1994 Davis Standard Gloss External Layer - 200 kg/h
- Cloeren Feedblock - 3 layer upto 5 catridge
- 1250 mm Cloeren Die Head
- 5 x Calendar Rolls - Diameters: 450 / 600 / 600 / 600 / 600 mm
- No Dryer
- Gneuss / Kreyenborg Filter
- 4 x Demag Gear Pumps
- Electronic Thickness Control
- Camera Inspection Included
- Piovan Dosing System:
- MDL 850 x 2
- MDW 100
- MDW 100 Sing Units: FDM S7
- Edge Trim Granulation
- Roll Cutting Unit
- Maier Double Winding System
Specifications
| Manufacturer | Davis Standard |
| Model | PP/PS Extrusion Line |
| Year | 1994 |
| Condition | Used |
| specifications_en | Materials: PP & PS Max Output: PS: 2000 kg/h / PP: 1200 kg/h Max PP Material Thickness: 0.3 - 1.5mm Max Roll Diameter: TBC Max Sheet Width: 1200 mm Max Speed: 50m / minute Notes: All details are subject to change and/or errors. All equipment is subject to availability and/or prior sale. Power Supply: 400V 50Hz |
