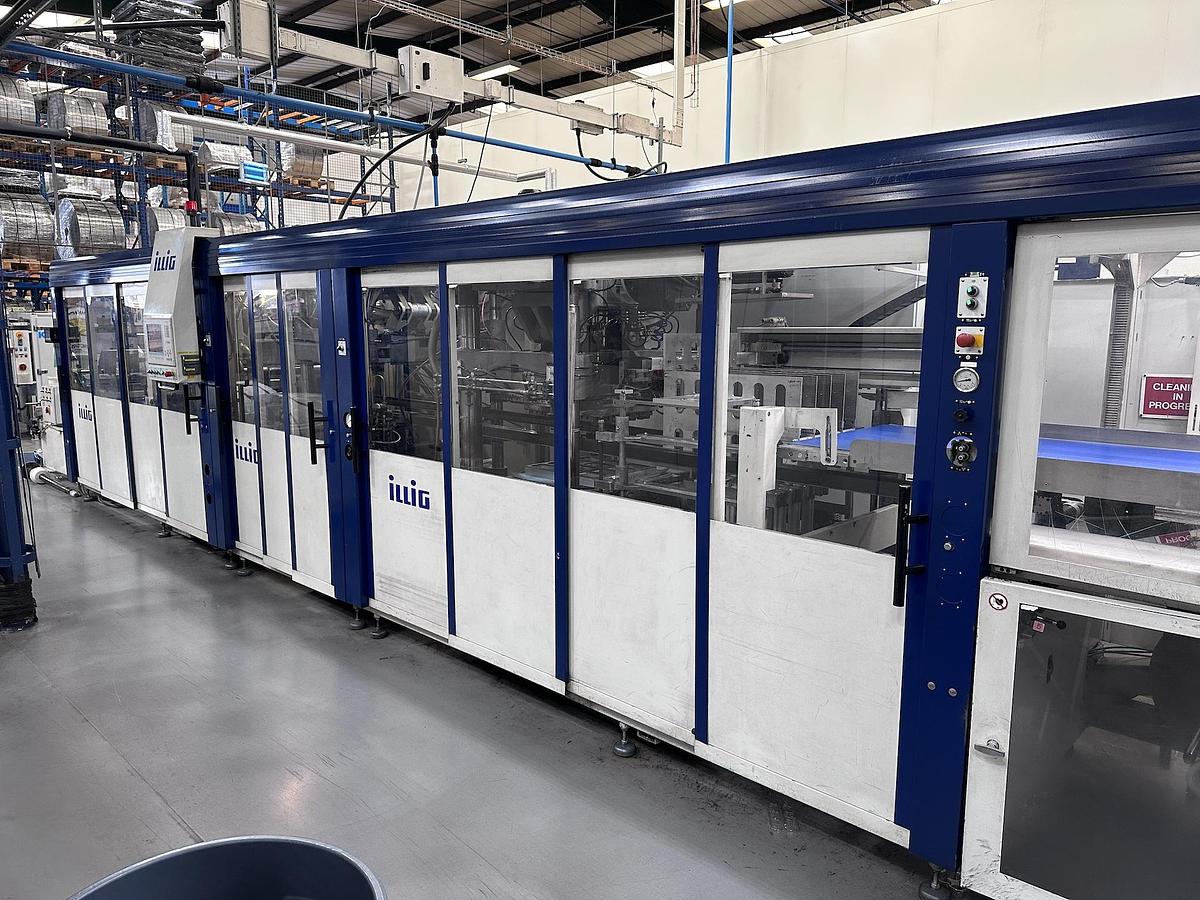

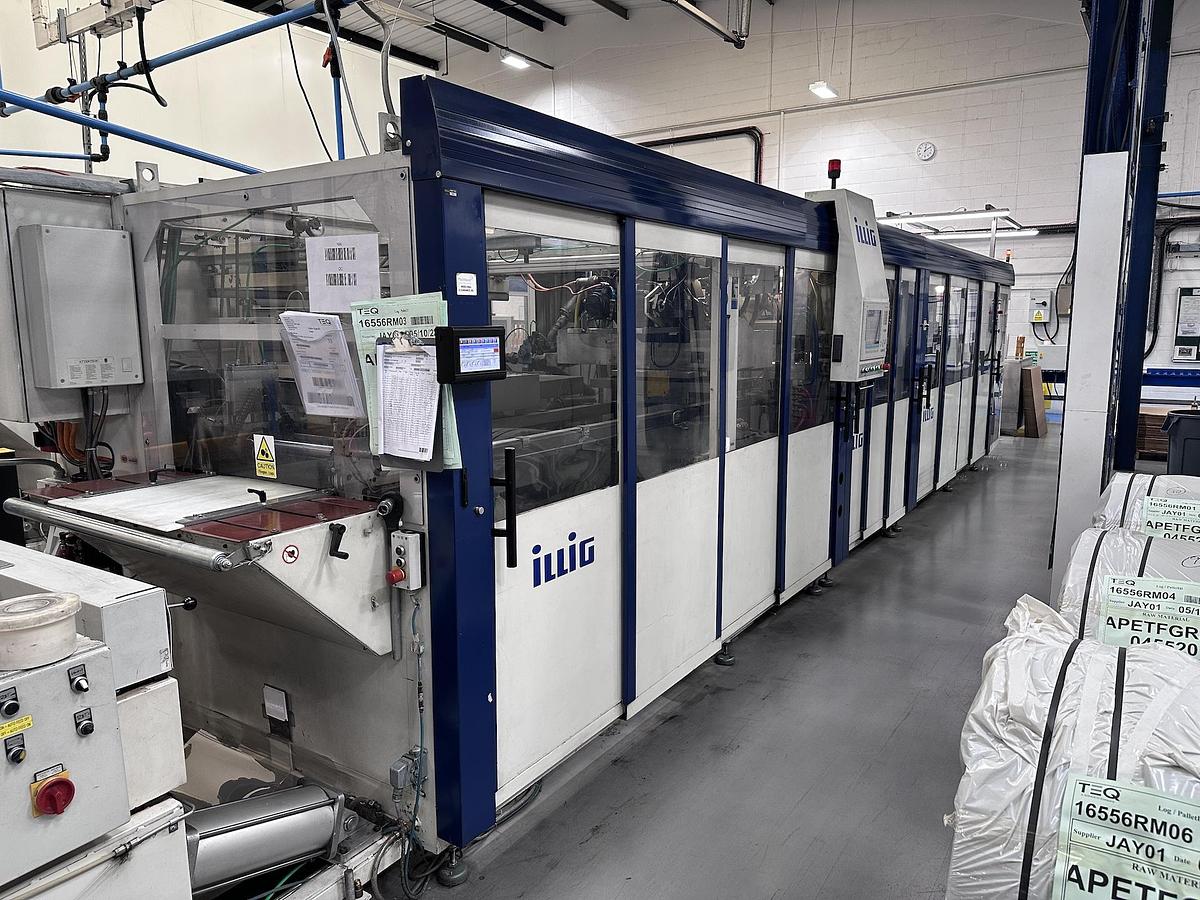

2007 Illig RDKP 72g
Sold
Specifications
| Manufacturer | Illig |
| Model | RDKP 72g |
| Year | 2007 |
| Condition | Used |
| specifications_en | Approx Hours: 47600 Approx total height: 2500 mm Approx total weight: 11,000 kg Approx total width: 2510 mm Delivery date: Immediately Depth of draw: 120 / 120 mm Forming pressure: 6 bar Hole Punching Force: 200 kN Max cycles-minute: 55 Max forming area: 756 x 535 mm Max mould closing force: 200 kN Max Sheet Width: 805 mm Min Forming Area: 300 x 100 mm Notes: All details are subject to change and/or errors. All equipment is subject to availability and/or prior sale. Stations: Forming, Hole Punching, Cutting and Stacking Steel Rule Punching Force: 600 kN |
