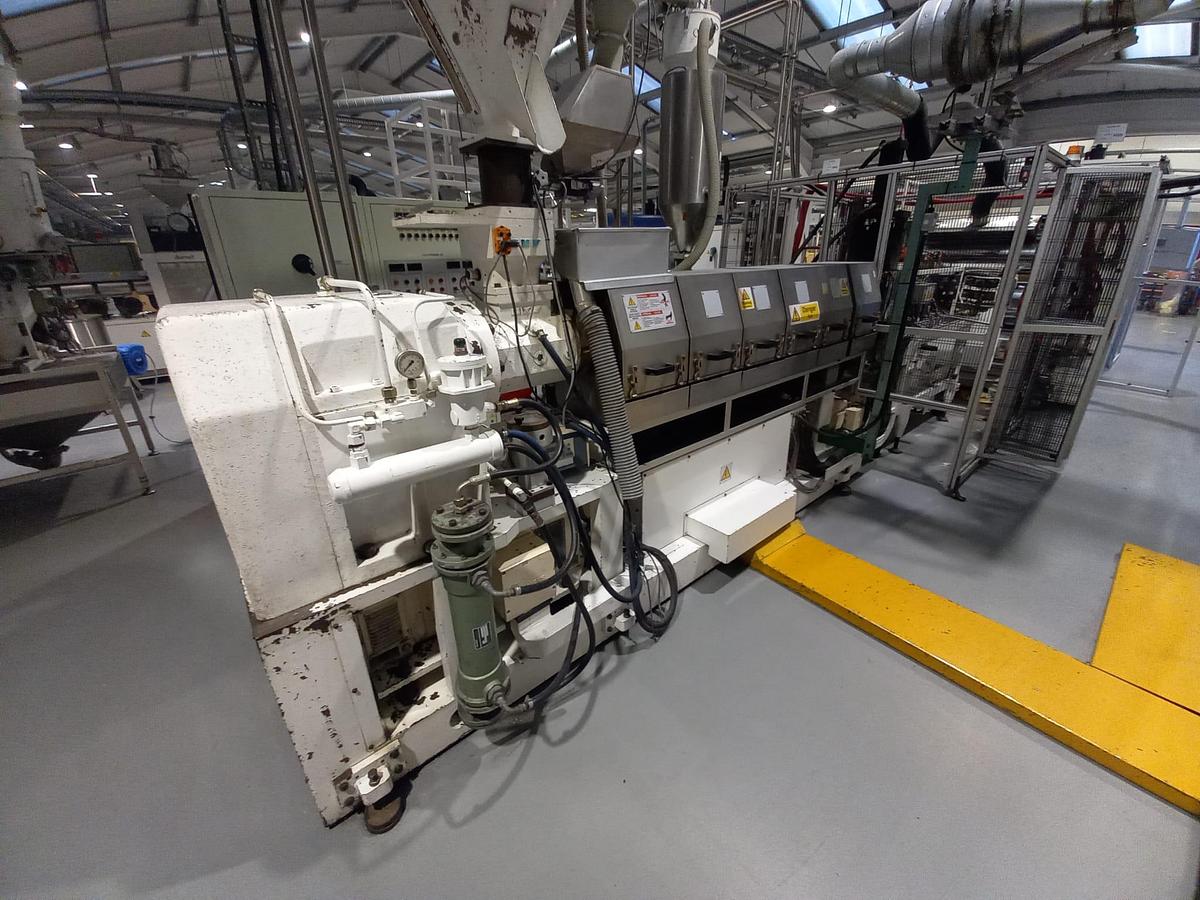

2001 OMV Inline Extruder

Extruder 1- Main extruder diameter: 80mm L/D: 3200mm / 34D Degassing: no – although I do believe there is a venting option available, however we never used it in either PS/PP materials Motor type: DC Extruder -2- co extruder diameter: 45mm L/D: not sure Degassing: NO Motor type: DC Calandar Roll Width: 1000mm Diameter roll 1: top roller 269mm Diameter roll 2: middle roller 350mm Diameter roll 3:bottom roller 350mm Motor type: Servo? DC Each roller speed adjustable? Yes - Output at certain thickness (output examples) Maximum we made – 600mm wide x 2.2mm thick, can make wider and thicker Some examples 520mm x 1.4mm at line speed 4.5mtrs/min……550mm x 1.6mm at line speed 3.8mtrs/min 250kg (300kg with co extruder) (kg/hr) rough indication - Manuals available? Yes - Is the controller program available? Spare operating control screen available. Controller programs are held by supplier - How long has it been disconnected? – Still connected, however has not ran in production in 2023 - any major problems ? NO, machine was always easily started and ran had inline production OEE figure of above 85%
