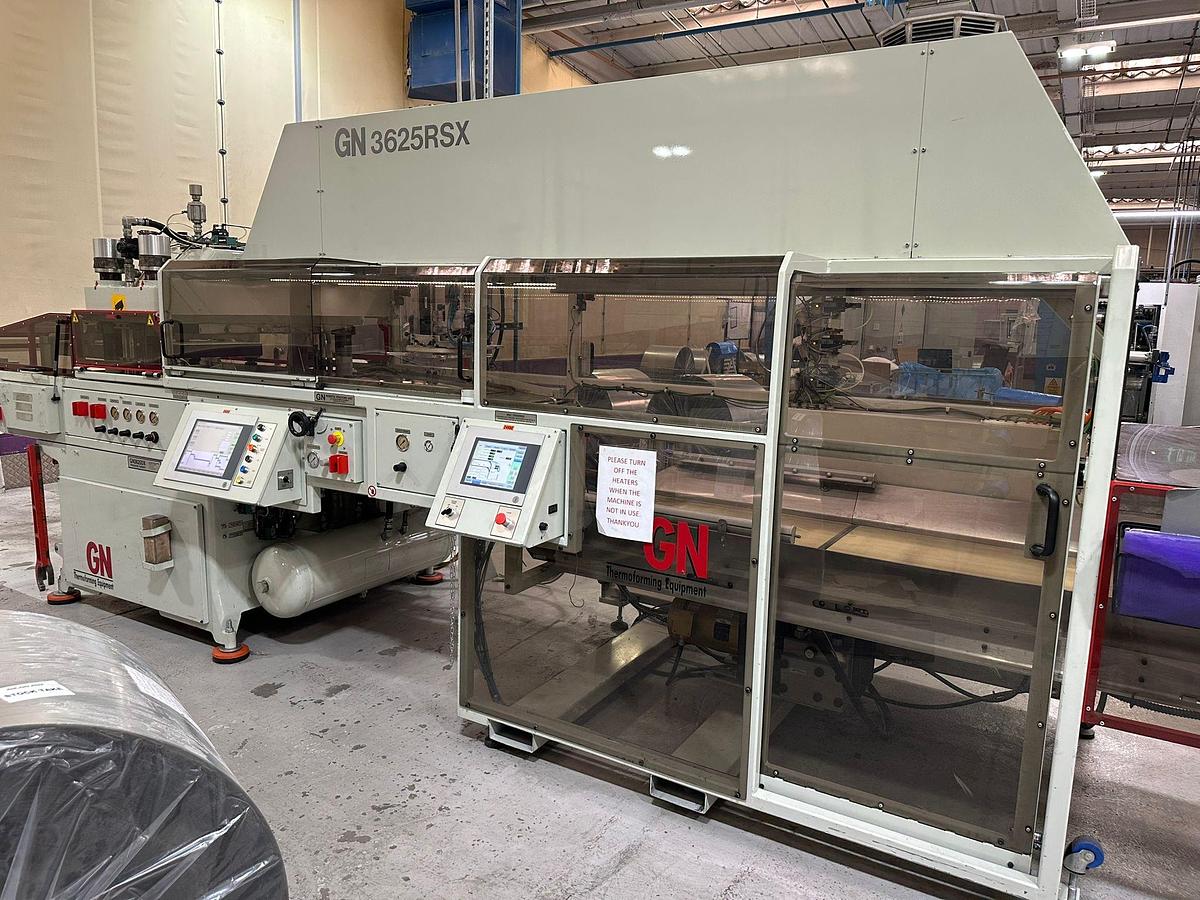

2018 GN 3625DX / RSX3625

Make: GN Model: 3625DX with 3625 RSX Robot Stacker Year: 2018 Hours: 20203 Availability: Immediately Forming area: 915 × 635 mm (36″ × 25″) Depth of draw: 125 mm (5″) Maximum sheet width: 965 mm (38″) Material thickness range: 0.15 – 1.00 mm (0.006″ – 0.040″) Maximum cycle speed: 22 – 30 cycles per minute (depending on material and setup) Power consumption: ~12 kW/hr Electrical requirements: 3-phase, 220–240 V / 380–415 V / 440–480 V, 50–60 Hz Cooling water: 14 L/min at 15–20 °C (3 gal/min at 58–68 °F) Air requirements: Pressure: ≥6.8 bar (100 PSI) Flow: ~2,000 L/min (~80 CFM) Knife length: 10,500 mm for APET 11,430 mm for other materials Machine footprint: 3,200 × 2,100 × 2,210 mm (126″ × 83″ × 87″) Weight: Approx. 5,987 kg (13,200 lb) Key features: Servo-driven platen and sheet transport Multi-zone contact heating with preheater Six-point toggle system with oversized bearings In-mould cutting capability HMI with diagnostics and remote access PLC control with tonnage monitoring Included equipment: Robotic stackers (GN RSX) Efficiency highlights: Low scrap rate (12–14%) Compact layout High APET output capability
